SPECIFICATIONS
Application: Desktop
Back I/O Ports: 1x RJ45,2x RJ45,4 x USB 2.0
Battery Included: no
Chipset: Intel B85
Chipset Manufacturer: Intel
Form Factor: CeB,Micro-ATX
High-concerned chemical: None
Max LAN Speed: 100Mbps
Maximum Ram Capacity: 32 GB
Memory channel: Double
Number Of Memory Slots: 4
Number of M.2: 1
Number of PCI: 2
Number of PCIe x 1: 1
Number of PCIe x 16: 1
Number of PCIe x 4: 0
Number of PCIe x 8: 0
Number of SATA Ports: 4
Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector
Onboard LAN: 1x RJ45
PCI – E standards: PCI-E 3.0
Package: Yes
Ports: M.2
Processor compatibility: Intel Xeon
Quality Certification: ce,ROHS
RAID Supported: no
SATA RAID: 0
Socket Type: LGA1150
Special Features: NONE
Storage Interface Type: SATA,M.2 (NVMe)
Support Memory Type: DDR3
Support USB Type: USB 2.0,USB 3.0
Supports M.2 SSD: 2280
Usage Scenario: Gaming,Audio & Video,Household,Office,Design,Video Production,others
With CPU: No
>> Package includes:

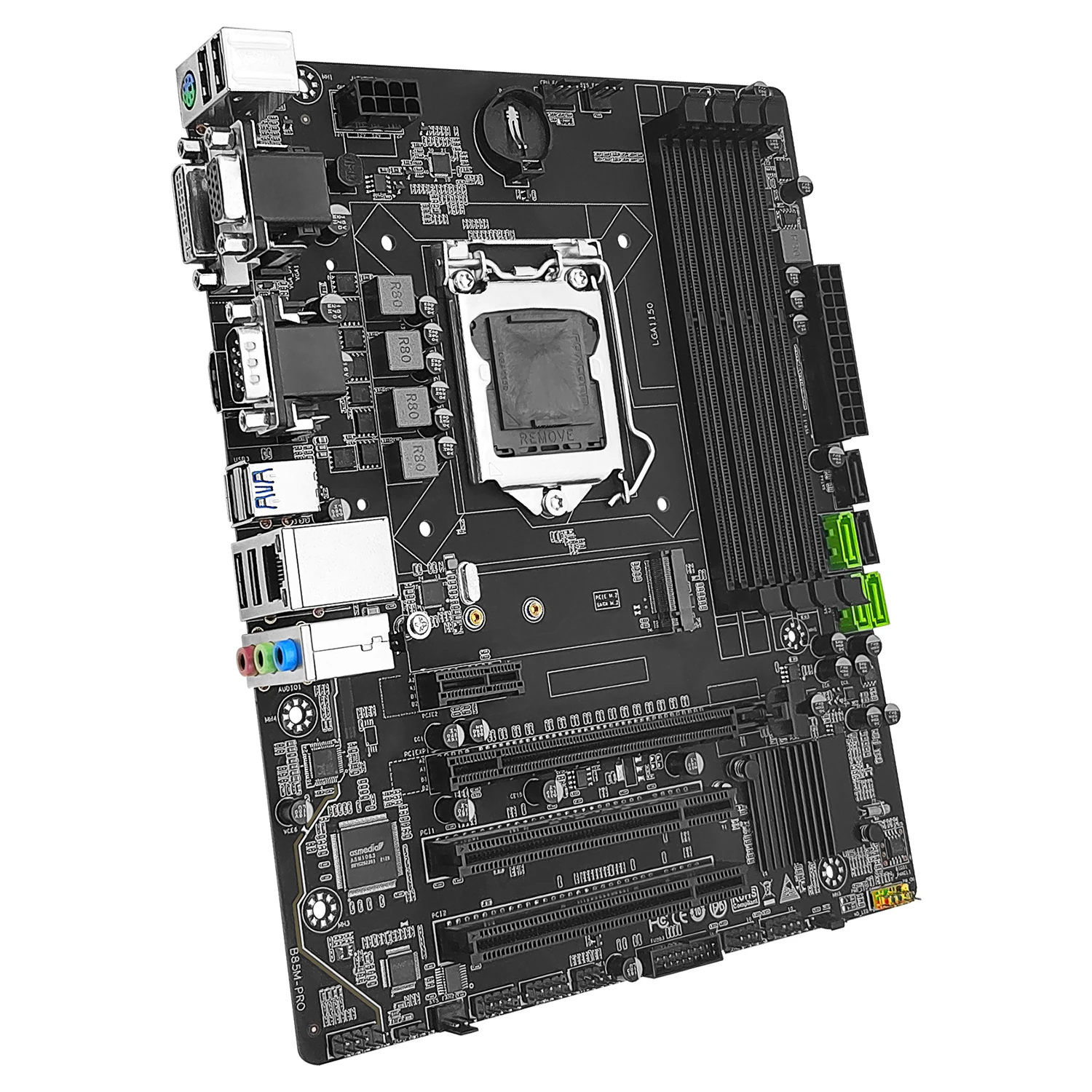

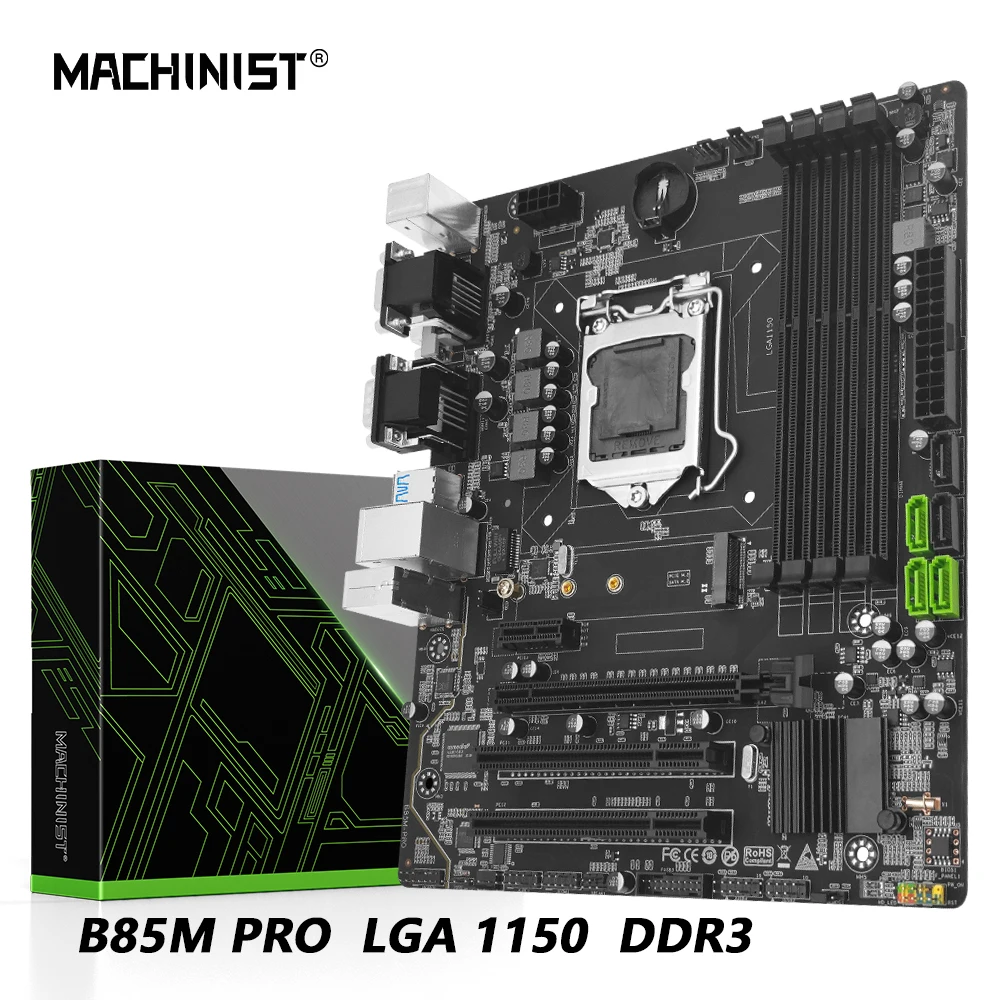

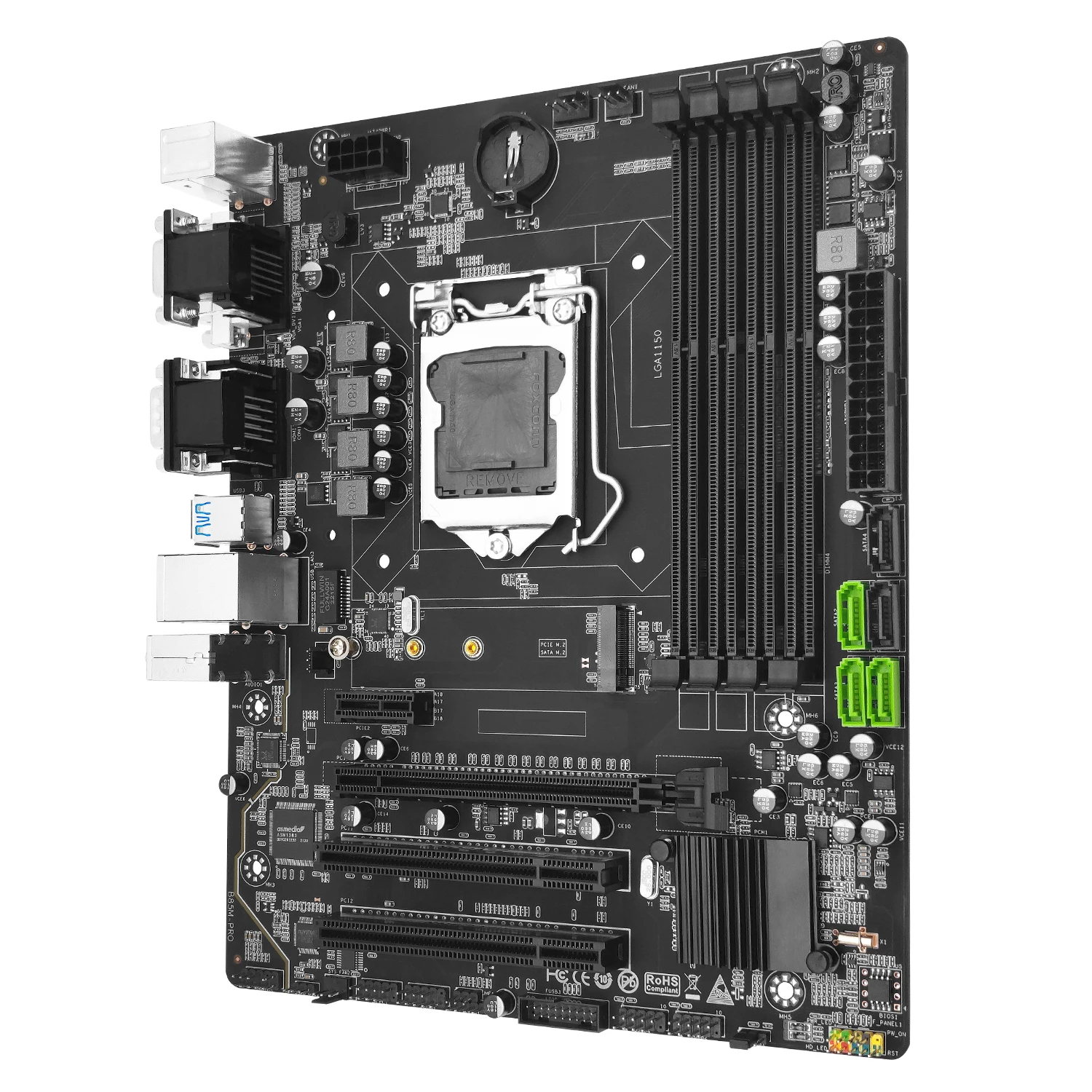

Motherboard: B85M-PRO LGA 1150 motherboard *1.

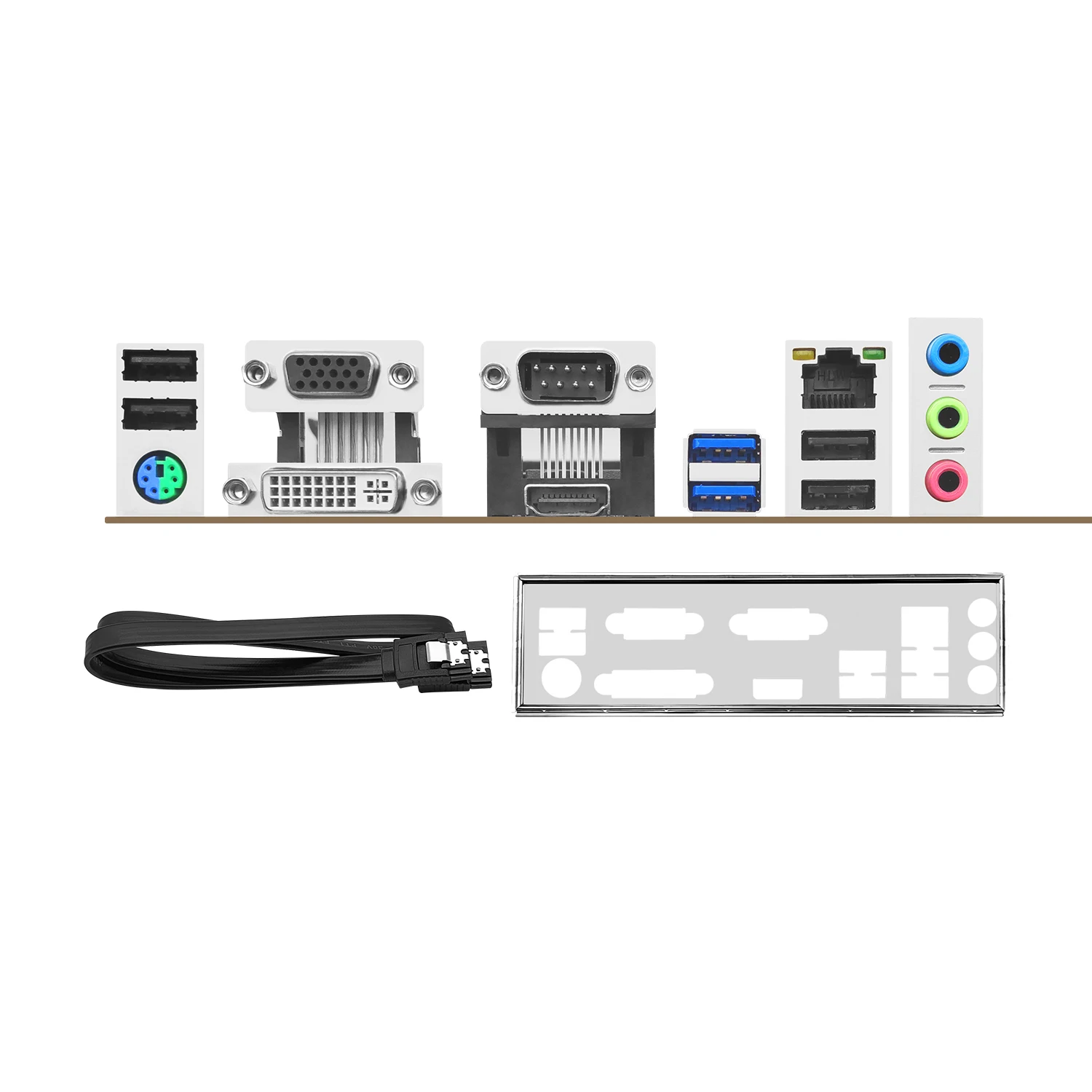

Complimentary accessories: I/O shield *1, SATA cable *1.
>> Motherboard information:
Brand :.
Motherboard model :B85M-PRO.
Processor: Supports Intel corei7 /i5 / i3 Celeron/Pentium/E3 lga1150 pin series processors.
Chipset :B85 Chipset.
>> Memory:
Technology: Dual channel DDR3. Supports 1066/1333/1600/1866MHZ.
Maximum capacity 32GB (8G x 4).
Memory slot :4 * 240 PIN DDR3.
Supported memory type: Only DDR3 desktop memory is supported.
(Note: Please use international brands such as Samsung, Kingston, Sandee, Micron, Hynix, etc. Other brands may not be compatible.)

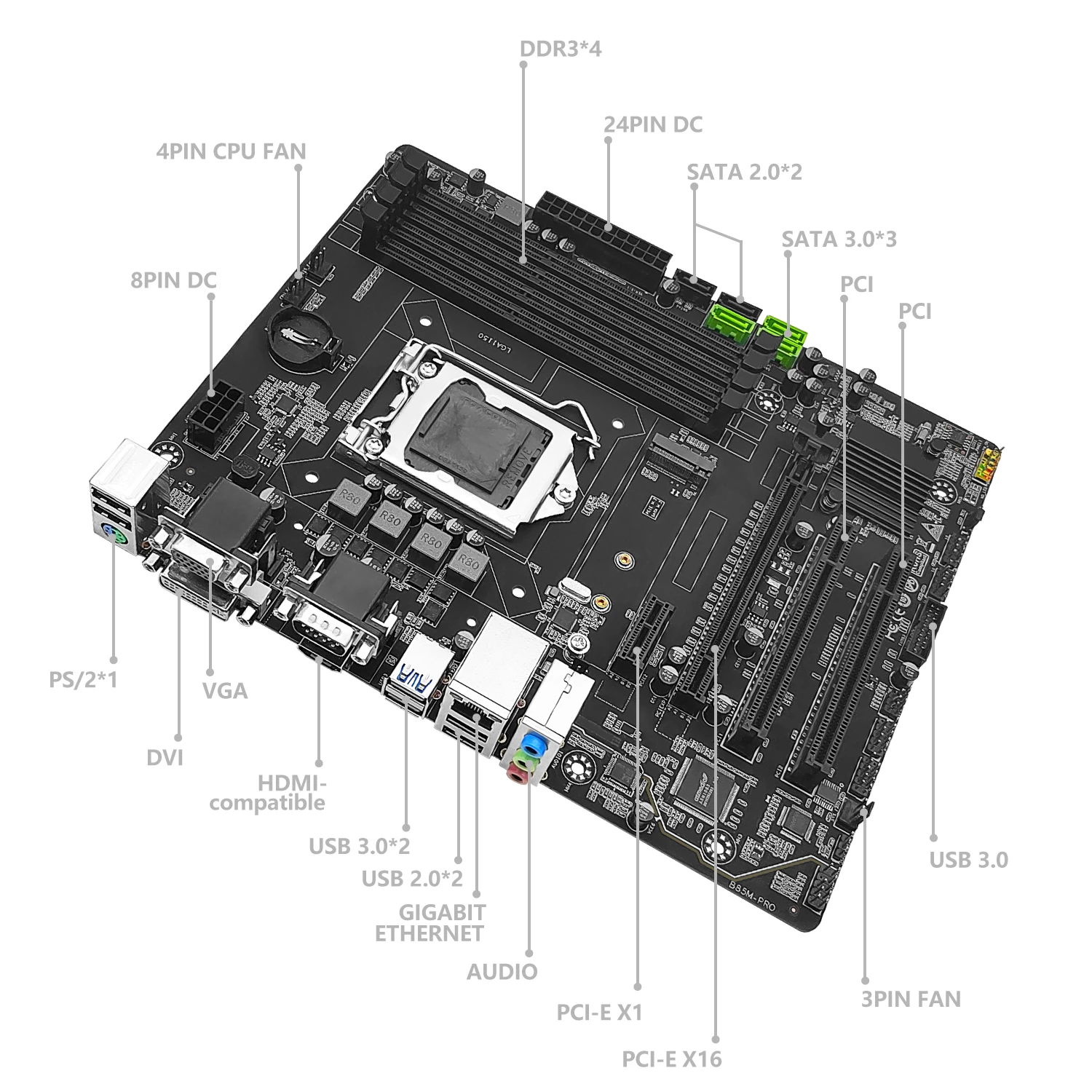

>> Post I/O
PS/2: two-in-one interface.
USB ports :2 USB3.0,4 USB2.0.
Display interface: 1 HDMI, 2 VGA, 1 DVI.
Ethernet: one Gigabit network adapter.
Audio :1 (Mic-in, Line-out, Line-in).
>> Internal connector:
PCIe: One PCIe 16x, one PCIe 1x, and two PCIe ports.
F_PANEL: 1 2x5Pin pin.
SATA ports: 4 (2 SATA2.0:3 SATA3.0);
1 standard 1x8PIN power outlet; 1 standard 1x24PIN power outlet;
M.2 Port: One NVME port.
>> Regarding the tariff issue, please make sure that you can solve the customs clearance problem yourself, if you can't solve it, we do not recommend that you buy products in our store. We are not responsible for tariffs. Thank you for your understanding.
>> Note:
(1) The color of the tank bottom plate may vary from batch to batch, but it will not affect the use of the product. Products are constantly optimized and upgraded.

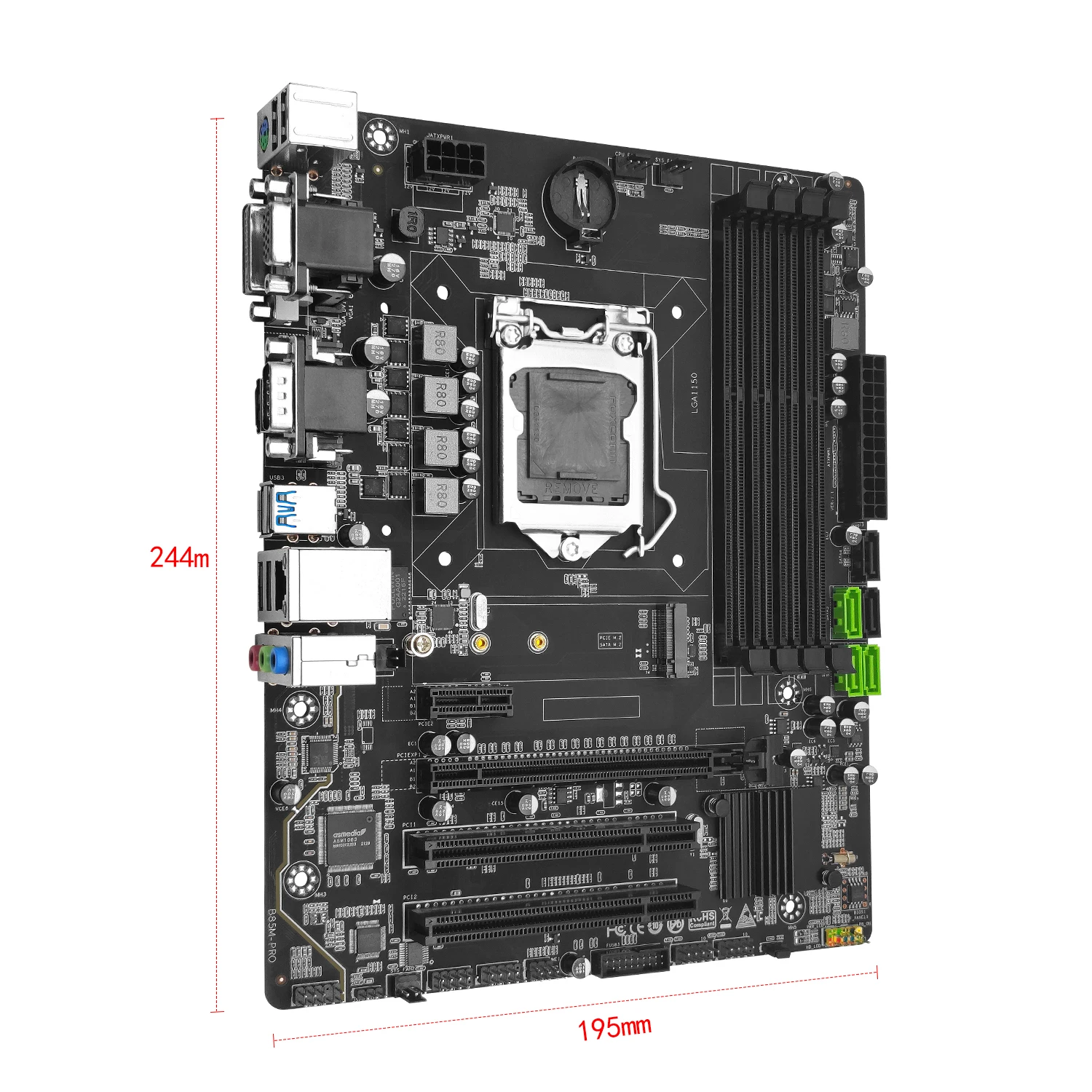

(2) Due to manual measurement, please allow an error of 1-3mm.
(3) Due to different displays and different lighting, the picture may not show the actual color of the item. Thank you for your understanding.
(4) The platform needs a powerful power supply. Make sure your power supply is sufficient to support this platform. (At least 500w brand power supply)
(5) The battery in the motherboard photo is not included and will be removed before shipment, because the logistics requirements prohibit the use of the battery.
